Cross Linked Polyethene Cables ( ht-XLPE Cales)
HT Xlpe cables, not in our product range,below data for technical information only.

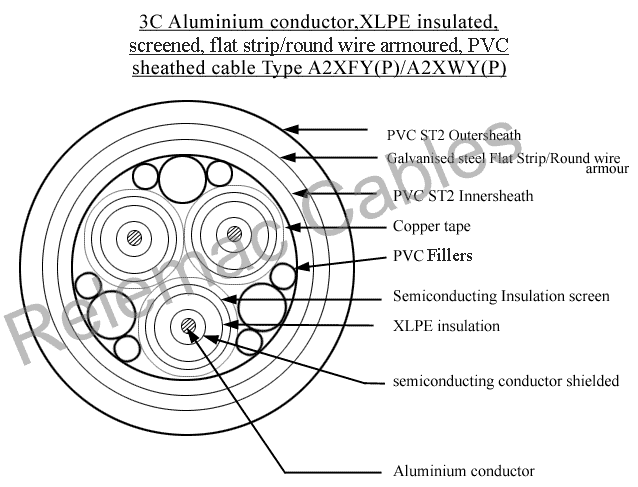

XLPE Cables >> Three Core Copper/Aluminium Conductor XLPE Insulated PVC Sheathed Cables Round Wire Armoured A2XWY P
Product Type >> screened
KV Range >> 19 / 33 kV
3.3 kV l 3.8/6.6 kV l 6.36/11 kV l 11/11 kV l 12.7/22 kV
| Conductor | Nominal Thickness of Ins. | Min. thick-ness of I/Sn | Nominal Dimension G.S. Strip armour | Min. Thick-ness of O/Sh. | Appx. Overall Dia. Of Cable | Appx. Weight of Cable | Std. Drum Length | Appx. Shipping Wt. Of Cable (for Std. Drum length) | Max.D.C. Resistance at 20 ° C | Max.D.C. Resistance at 90 ° C | Appx. Reactance at 50Hz. | Appx. Capacitance per phase | Continuous Current Rating | Short Circuit Rating for 1 Sec | ||
| Nominal Area | Min No of Wires | In Ground at 20°C | In Air at 30°C | |||||||||||||
| mm2 | Nos. | mm | mm | mm X mm | mm | mm | Kg/Km | Mtrs. | Kg | Ohm/ KM | Ohm/ KM | Ohm/ KM | U fd/Km | Amps | Amps | KA (rms) |
| 50 | 6 | 8.8 | 0.7 | 3.15 | 2.68 | 80 | 8960 | 500 | 6610 | 0.641 | 0.822 | 0.148 | 0.129 | 140 | 174 | 4.7 |
| 70 | 12 | 8.8 | 0.7 | 3.15 | 2.84 | 83 | 9740 | 500 | 7000 | 0.443 | 0.568 | 0.137 | 0.143 | 170 | 218 | 6.58 |
| 95 | 15 | 8.8 | 0.7 | 3.15 | 3 | 88 | 10670 | 450 | 6930 | 0.32 | 0.411 | 0.129 | 0.161 | 202 | 259 | 8.93 |
| 120 | 15 | 8.8 | 0.7 | 4 | 3 | 93 | 12800 | 350 | 6610 | 0.253 | 0.325 | 0.124 | 0.171 | 230 | 297 | 11.3 |
| 150 | 15 | 8.8 | 0.7 | 4 | 3 | 96 | 13600 | 300 | 6210 | 0.206 | 0.265 | 0.12 | 0.183 | 257 | 322 | 14.1 |
| 185 | 30 | 8.8 | 0.7 | 4 | 3 | 100 | 14620 | 300 | 6520 | 0.164 | 0.211 | 0.117 | 0.197 | 290 | 382 | 17.4 |
| 240 | 30 | 8.8 | 0.7 | 4 | 3 | 105 | 16020 | 300 | 6940 | 0.125 | 0.162 | 0.111 | 0.218 | 335 | 448 | 22.6 |
| 300 | 30 | 8.8 | 0.7 | 4 | 3 | 110 | 17440 | 300 | 7360 | 0.1 | 0.13 | 0.107 | 0.235 | 378 | 493 | 28.2 |
| 400 | 53 | 8.8 | 0.7 | 4 | 3 | 116 | 19150 | 300 | 7875 | 0.0778 | 0.102 | 0.103 | 0.257 | 432 | 574 | 37.6 |
