XLPE Cables

Cross Linked Polyethene Cables ( ht-XLPE Cales)

HT Xlpe cables, not in our product range,below data for technical information only.

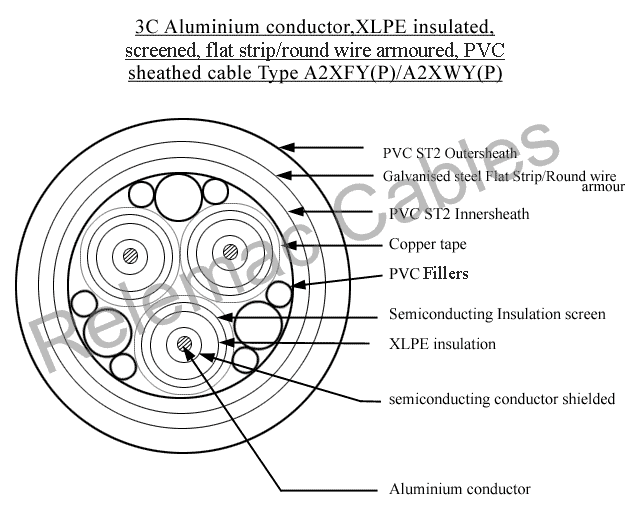

XLPE Cables >> Three Core Copper/Aluminium Conductor XLPE Insulated PVC Sheathed Cables Round Wire Armoured A2XWY P

Product Type >> Screened

KV Range >> 3.8 / 6.6 kV

3.3 kV    l     6.36/11 kV    l     11/11 kV    l    12.7/22 kV    l    19/33 kV

Conductor Nominal Thickness of Ins. Min. thick-ness of I/Sn Nominal Dimension G.S. Strip armour Min. Thickness of O/Sh. Appx. Overall Dia. Of Cable Appx. Weight of Cable Std. Drum Length Appx. Shipping Wt. Of Cable (for Std. Drum length) Max.D.C. Resistance at 20 deg. C Max.D.C. Resistance at 90 deg. C Appx. Reactance at 50Hz. Appx. Capacitance per phase Continuous Current Rating Short Circuit Rating for 1 Sec
Nominal Area Min No  of Wires In Ground at 20degC In Air at 30 degC
mm2 Nos. mm mm mm X mm mm mm Kg/Km Mtrs. Kg Ohm/KM Ohm/KM Ohm/KM U fd/Km Amps Amps KA (rms)
35 6 2.8 0.4 2 1.72 45 3130 500 2065 0.868 1.11 0.116 0.259 119 133 3.29
50 6 2.8 0.5 2 1.88 48 3560 500 2390 0.641 0.822 0.11 0.29 140 159 4.7
70 12 2.8 0.5 2 1.88 52 4050 500 2785 0.443 0.568 0.102 0.33 172 199 6.58
95 15 2.8 0.5 2.5 2.04 57 5160 500 3590 0.32 0.411 0.0971 0.383 205 243 8.93
120 15 2.8 0.6 2.5 2.2 61 5870 500 3885 0.253 0.325 0.0935 0.415 233 279 11.3
150 15 2.8 0.6 2.5 2.2 64 6380 500 4140 0.206 0.265 0.091 0.45 261 319 14.1
185 30 2.8 0.6 2.5 2.36 68 7150 500 4745 0.164 0.211 0.0885 0.493 295 363 17.4
240 30 2.8 0.7 3.15 2.52 75 9070 500 6665 0.125 0.162 0.0865 0.558 341 429 22.6
300 30 3 0.7 3.15 2.68 81 10370 500 7315 0.1 0.13 0.0849 0.571 385 495 28.2
400 53 3.3 0.7 4 3 92 13850 500 6980 0.0778 0.102 0.0839 0.582 439 577 37.6
500 53 3.5 0.7 4 3 101 16270 500 7010 0.0605 0.081 0.0821 0.691 497 663 47
