Cross Linked Polyethene Cables ( ht-XLPE Cales)

HT Xlpe cables, not in our product range,below data for technical information only.

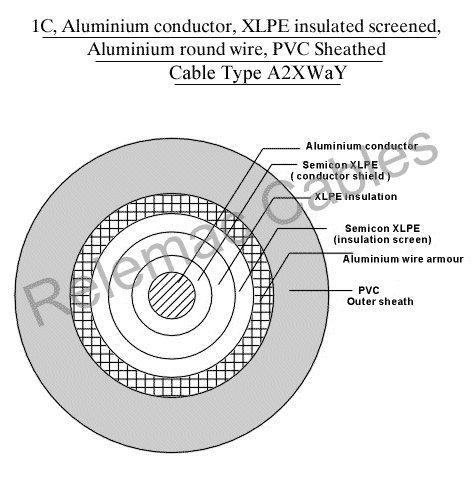

XLPE Cables >> Single Core Copper/Aluminium Conductor XLPE Insulated PVC Sheathed Cables Round Wire Armoured A2XWaY

Product Type >> screened

KV Range >> 6.36 / 11 kV

3.3 KV     l     3.8/6.6 kV    l     11/11 kV    l     12.7/22 kV    l     19/33 kV

Conductor Nominal Thickness of Ins. Nominal Dia. Of Al. Wire Ar. Nominal Dia. Of O/Sh. Approx. Overall Dia. Of Cable Approx. Weight of Cable Approx. Shipping Wt. Of Cable (for Std. Drum length) Max.D.C. Resistance at 20 deg. C Approx. A.C. Resistance at 90 deg C Approx. Reactance at 50Hz. Approx. Capacitance per phase Continuous Current Rating Short Circuit Rating for 1 Second
Nominal Area Min No  of Wires In Ground at 20degC In Air at 30degC
Mm2 Nos. mm mm mm mm Kg/Km Kg Ohm/KM Ohm/KM Ohm/KM U fd/Km Amps Amps KA (rms)
35 6 3.6 1.6 1.4 24 650 545 0.868 1.11 0.134 0.214 124 147 3.29
50 6 3.6 1.6 1.4 26 720 580 0.641 0.822 0.1338 0.238 145 176 4.7
70 12 3.6 1.6 1.4 27 830 635 0.443 0.568 0.1237 0.27 177 220 6.58
95 15 3.6 1.6 1.4 29 950 695 0.32 0.411 0.1168 0.311 212 269 8.93
120 15 3.6 1.6 1.56 31 1090 815 0.253 0.325 0.1128 0.337 241 314 11.3
150 15 3.6 1.6 1.56 32 1210 875 0.206 0.265 0.1096 0.361 270 356 14.1
185 30 3.6 2 1.56 35 1450 995 0.164 0.211 0.1073 0.395 304 410 17.4
240 30 3.6 2 1.56 37 1680 1340 0.125 0.161 0.1041 0.437 353 489 22.6
300 30 3.6 2 1.56 39 1920 1460 0.1 0.13 0.1002 0.48 399 564 28.2
400 53 3.6 2 1.72 43 2320 1660 0.0778 0.102 0.0968 0.539 457 663 37.6
500 53 3.6 2 1.72 46 2720 1860 0.0605 0.08 0.0939 0.604 520 775 47
630 53 3.6 2 1.88 51 3340 2430 0.0469 0.0634 0.0921 0.69 591 902 59.22
800 53 3.6 2.5 2.04 57 4300 3160 0.0367 0.0513 0.0897 0.796 670 1059 75.2
1000 53 3.6 2.5 2.2 61 4990 3450 0.0291 0.0426 0.0875 0.88 742 1202 94
