Cross Linked Polyethene Cables ( ht-XLPE Cales)

HT Xlpe cables, not in our product range,below data for technical information only.

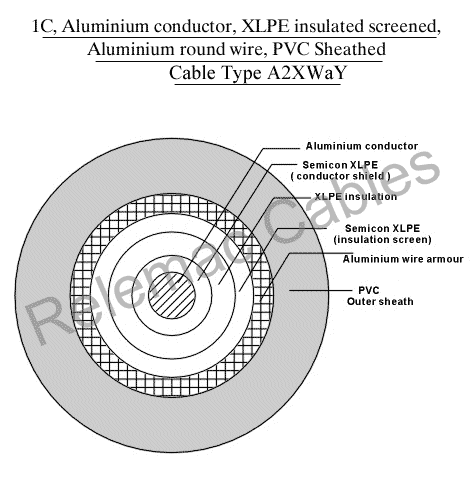

XLPE Cables >> Single Core Copper/Aluminium Conductor XLPE Insulated PVC Sheathed Cables Round Wire Armoured A2XWaY

Product Type >> screened

KV Range >> 19 / 33 kV

3.3 KV     l     3.8/6.6 kV    l     6.36/11 kV    l     11/11 kV    l     12.7/22 kV

Conductor Nominal Thickness of Ins. Nominal Dia. Of Al. Wire Ar. Nominal Dia. Of O/Sh. Approx. Overall Dia. Of Cable Approx. Weight of Cable Approx. Shipping Wt. Of Cable (for Std. Drum length) Max.D.C. Resistance at 20 deg. C Approx. A.C. Resistance at 90 deg C Approx. Reactance at 50Hz. Approx. Capacitance per phase Continuous Current Rating Short Circuit Rating for 1 Second
Nominal Area Min No  of Wires In Ground at 20degC In Air at 30degC
Mm2 Nos. mm mm mm mm Kg/Km Kg Ohm/KM Ohm/KM Ohm/KM U fd/Km Amps Amps KA (rms)
50 6 8 2 1.56 37 1390 1195 0.641 0.822 0.1592 0.129 145 187 4.7
70 12 8 2 1.56 39 1530 1265 0.443 0.5682 0.1479 0.143 177 233 6.58
95 15 8 2 1.72 41 1730 1475 0.32 0.4106 0.1401 0.161 211 283 8.93
120 15 8 2 1.72 43 1870 1545 0.253 0.3248 0.1347 0.171 240 326 11.3
150 15 8 2 1.72 44 2010 1615 0.206 0.2646 0.1308 0.182 269 372 14.1
185 30 8 2 1.72 46 2210 1735 0.164 0.2109 0.1266 0.196 303 424 17.4
240 30 8 2 1.88 48 2510 2015 0.125 0.1611 0.1221 0.214 351 510 22.6
300 30 8 2.5 2.04 52 2990 2255 0.1 0.1293 0.119 0.232 397 578 28.2
400 53 8 2.5 2.04 55 3400 2710 0.0778 0.1012 0.1138 0.257 455 678 37.6
500 53 8 2.5 2.2 59 3920 2910 0.0605 0.0795 0.1095 0.284 517 784 47
630 53 8 2.5 2.2 63 4580 3480 0.0469 0.0627 0.1061 0.319 590 914 59.22
800 53 8 2.5 2.36 69 5540 3940 0.0367 0.0505 0.1012 0.363 670 1075 75.2
1000 53 8 3.15 2.52 73 6580 4790 0.0291 0.0416 0.0993 0.398 744 1220 94
