Cross Linked Polyethene Cables ( ht-XLPE Cales)
HT Xlpe cables, not in our product range,below data for technical information only.

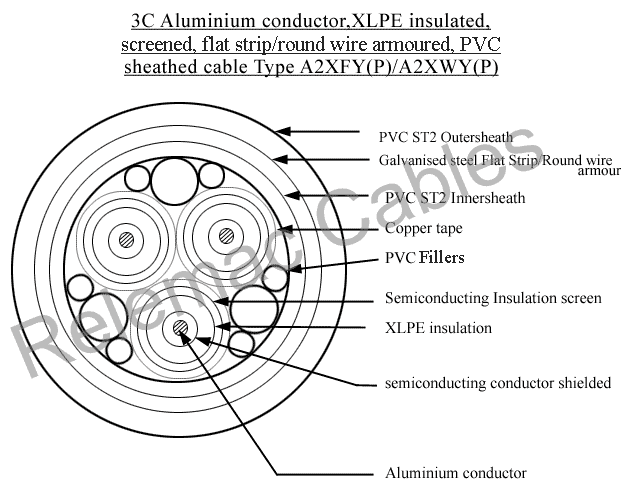

XLPE Cables >> Three Core Copper/Aluminium Conductor XLPE Insulated extended / taped PVC Inner Sheath Cables, Flat Strip Armoured A2XFY (P/T). Cables are available with both Taped(T) and extended PVC (P) inner sheath as per customer requirements.
Product Type >> screened
KV Range >> 6.36 / 11 kV
3.3 KV l 3.8/6.6 kV l 11/11 kV l 12.7/22 kV l 12.7/22 kV l 19/33 kV
Conductor | Nominal Thickness of Ins. | Min. thick-ness of I/Sn | Nominal Dimension G.S. Strip armour | Min. Thick- ness of O/Sh. |
Appx. Overall Dia. Of Cable | Appx. Weight of Cable | Appx. Shipping Wt. Of Cable (for Std. Drum length) | Max.D.C. Resistance at 20 ° C | Max.D.C. Resistance at 90 ° C | Appx. Reactance at 50Hz. | Appx. Capacitance per phase | Continuous Current Rating | Short Circuit Rating for 1 Second | ||
Nominal Area | Min No of Wires | In Ground at 20°C | In Air at 30°C | ||||||||||||
mm2 | Nos. | mm | mm | MmXmm | mm | mm | Kg/Km | Kg | Ohm/KM | Ohm/KM | Ohm/KM | U fd/Km | Amps | Amps | KA (rms) |
35 | 6 | 3.6 | 0.5 | 4x0.8 | 1.72 | 47 | 2630 | 1925 | 0.868 | 1.11 | 0.134 | 0.214 | 119 | 135 | 3.29 |
50 | 6 | 3.6 | 0.5 | 4x0.8 | 1.88 | 50 | 2980 | 2250 | 0.641 | 0.822 | 0.117 | 0.238 | 140 | 168 | 4.7 |
70 | 12 | 3.6 | 0.5 | 4x0.8 | 1.88 | 53 | 3430 | 2725 | 0.443 | 0.568 | 0.108 | 0.27 | 172 | 200 | 6.58 |
95 | 15 | 3.6 | 0.6 | 4x0.8 | 2.04 | 58 | 4060 | 3040 | 0.32 | 0.411 | 0.102 | 0.311 | 205 | 243 | 8.93 |
120 | 15 | 3.6 | 0.6 | 4x0.8 | 2.2 | 62 | 4590 | 3485 | 0.253 | 0.325 | 0.0984 | 0.337 | 233 | 279 | 11.3 |
150 | 15 | 3.6 | 0.6 | 4x0.8 | 2.2 | 65 | 5040 | 3710 | 0.206 | 0.265 | 0.0956 | 0.364 | 261 | 320 | 14.1 |
185 | 30 | 3.6 | 0.7 | 4x0.8 | 2.36 | 69 | 5710 | 4355 | 0.164 | 0.211 | 0.0928 | 0.397 | 294 | 363 | 17.4 |
240 | 30 | 3.6 | 0.7 | 4x0.8 | 2.52 | 74 | 6680 | 4840 | 0.125 | 0.162 | 0.0903 | 0.448 | 341 | 429 | 22.6 |
300 | 30 | 3.6 | 0.7 | 4x0.8 | 2.68 | 79 | 7650 | 5955 | 0.1 | 0.13 | 0.0876 | 0.487 | 384 | 494 | 28.2 |
400 | 53 | 3.6 | 0.7 | 4x0.8 | 2.84 | 87 | 9140 | 6700 | 0.0778 | 0.102 | 0.085 | 0.539 | 439 | 577 | 37.6 |
500 | 53 | 3.6 | 0.7 | 4x0.8 | 3 | 95 | 10930 | 5955 | 0.0605 | 0.081 | 0.083 | 0.604 | 492 | 656 | 47 |
