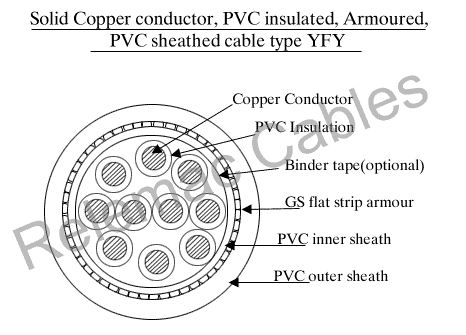

PVC Cables >> 650 1100V Copper Conductor PVC Insulated and Sheathed Unarmoured YY and Armoured YWY YFY

Product Type >> 3 Core Cables

2 core cables    |     4 core cables

No. of Cores Nominal Area of Cond'tor Sq.mm Nominal Thickness of PVC ins. mm Unarmoured Armoured Max.D.C. Conductor Resistance at 20°C  Ohm/KM A.C.Current Rating
Appx Overall Dia.  mm Appx. wt Kg/km Nominal Armour Size mm W       F Appx Overall Dia.  mm Appx wt Kg/km In Air at 40°C In Ground at 30°C
PVC insulation Amps HRPVC insulation Amps PVC insulation Amps HRPVC insulation Amps
3 Core 4 1 15 300   1.4 18 680 4.61 30 36 36 41
  6 1 16 380   1.4 19 780 3.08 39 47 45 51
  10 1 19 560   1.4 22 1040 1.83 52 62 60 68
  16 1 21 770 4X0.8   24 1150 1.15 66 79 77 88
