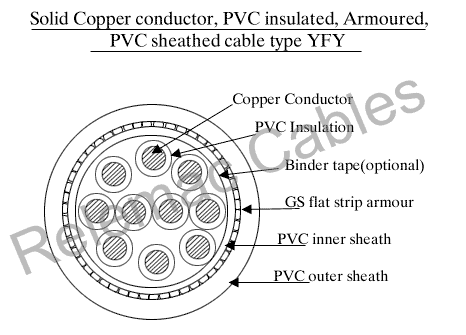

PVC Cables >> 650 1100V Copper Conductor PVC Insulated and Sheathed Unarmoured YY and Armoured YWY YFY
Product Type >> 2 Core Cables
| No. of Cores | Nominal Area of Cond'tor Sq.mm | Nominal Thickness of PVC ins. mm | Unarmoured | Armoured | Max.D.C. Conductor Resistance at 20°C Ohm/KM | A.C.Current Rating | ||||||
| Appx Overall Dia. mm | Appx. wt Kg/km | Nominal Armour Size mm W F | Appx Overall Dia. mm | Appx wt Kg/km | In Air at 40°C | In Ground at 30°C | ||||||
| PVC insulation Amps | HRPVC insulation Amps | PVC insulation Amps | HRPVC insulation Amps | |||||||||
| 2 Core | 4 | 1 | 14 | 250 | 1.4 | 18 | 620 | 4.61 | 35 | 42 | 41 | 47 |
| 6 | 1 | 15 | 300 | 1.4 | 19 | 700 | 3.08 | 45 | 54 | 50 | 57 | |
| 10 | 1 | 18 | 430 | 1.4 | 22 | 900 | 1.83 | 60 | 72 | 70 | 80 | |
| 16 | 1 | 20 | 600 | 4X0.8 | 23 | 950 | 1.15 | 78 | 94 | 90 | 103 | |
